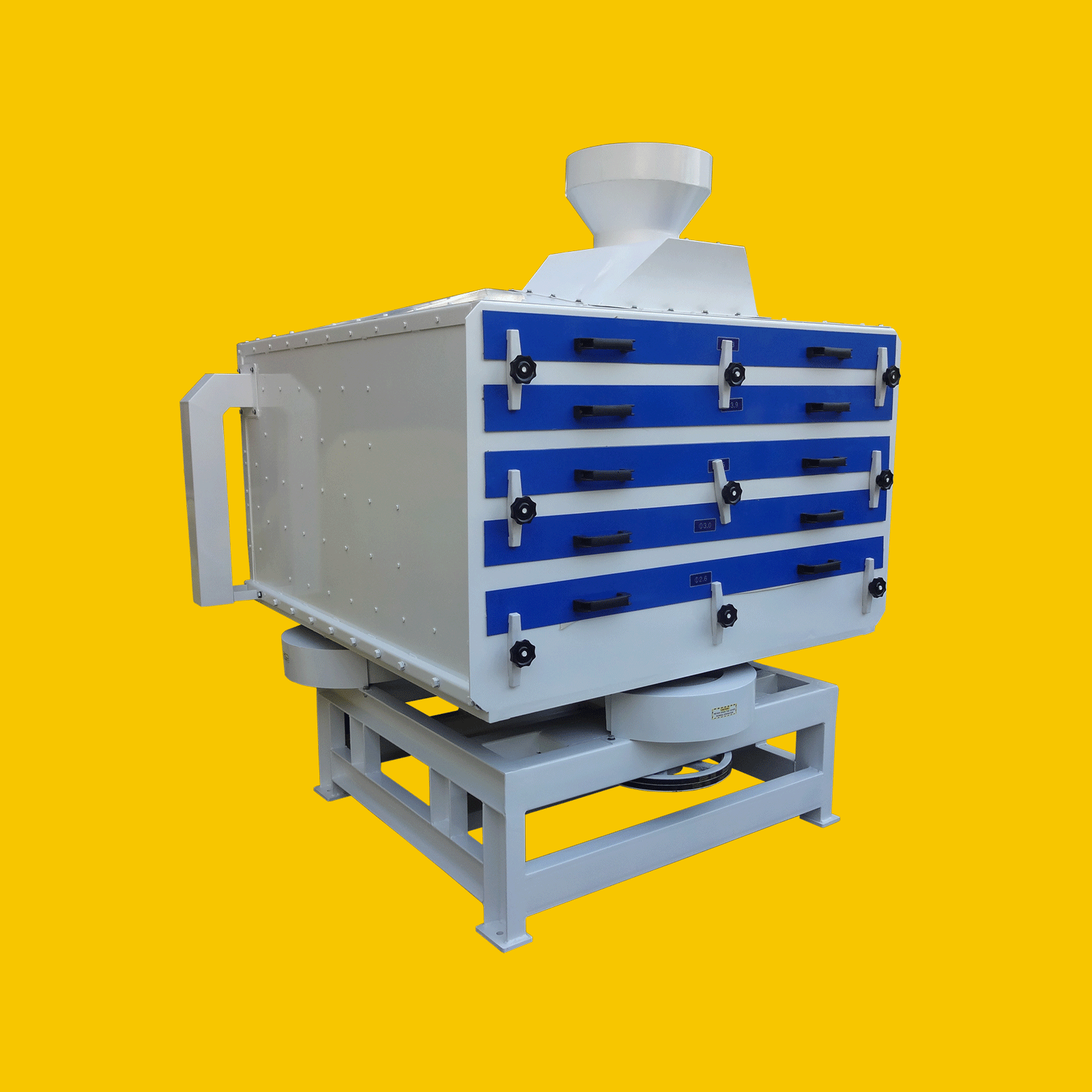

Sifter

Sifter is designed to sort grains into different categories on the basis of size and quality. This machine is best suited for rice.

SALIENT FEATURES:

  • Compact design – saves space
  • Dust-free, hygienic operation
  • Easy clean-out
  • High throughput capacity
  • Continuous operation

    • SPECIFICATIONS:

    Model No. PJP 100 x 5 PJP 125 x 5 PJP 150 x 5
    Capacity on paddy, TPH 3 4 6
    Motor, HP 1.5 1.5 2
    Working RPM 150 150 150
    Overall dimensions in MM (LxWxH) 1600 x 1300 x 1700 1600 x 1550 x 1700 1600 x 1800 x 1700
    Grading area (Sq. m) 7 8.5 10
    Grading layer 5 5 5
    Power V/(Hz) 415/50 415/50 415/50
    Download As a PDF
    x

    Length grader

    2

    Service technician putting sieves into a processing machine

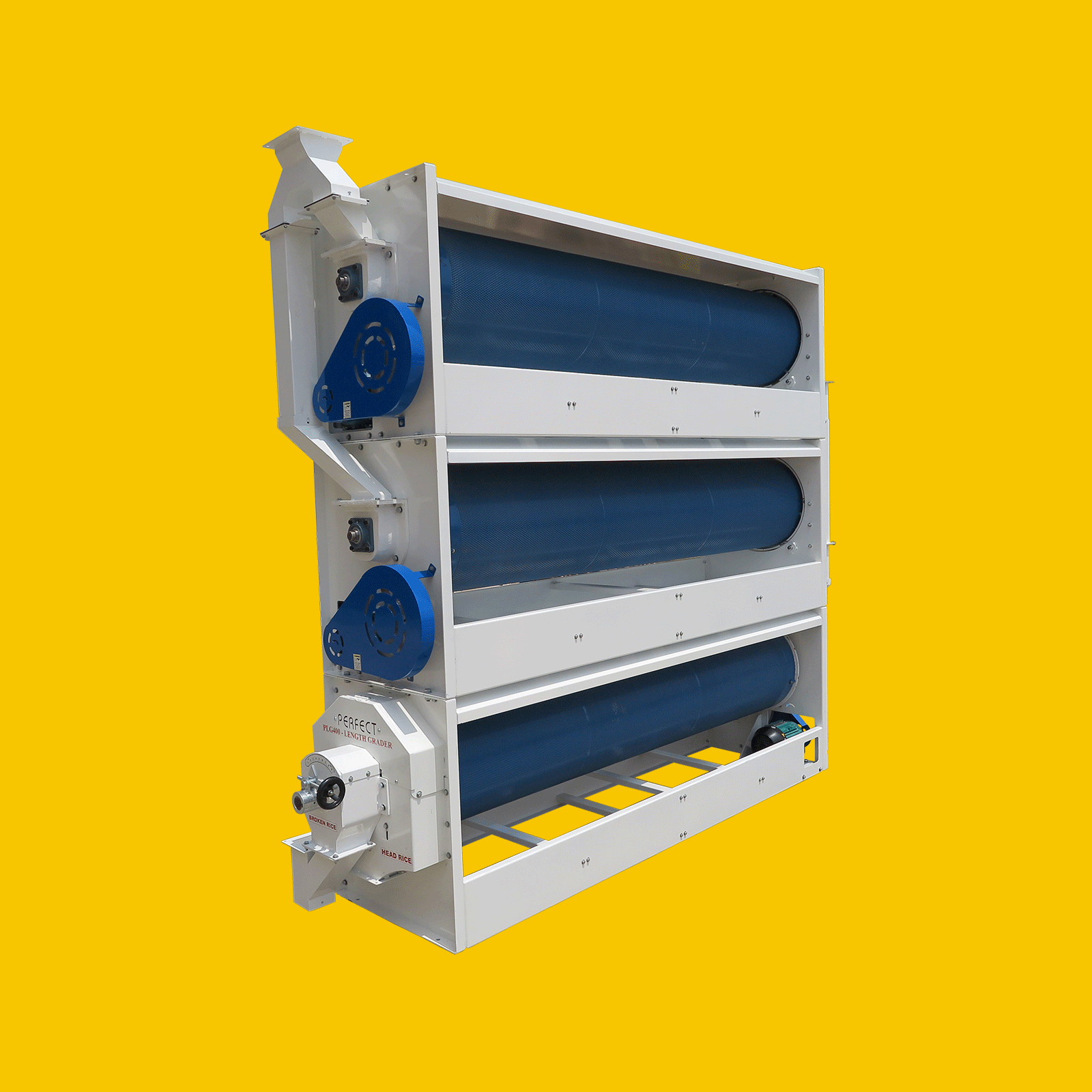

    Length grader

    Length grader is used for separating the broken rice from the head rice. When the rice is passed through the indented cylinder, broken rice is collected in a U trough and discharged by a screw conveyor.

    PLG 400 Rice length grader

    SUITABLE FOR:

  • All types of grains

    • SALIENT FEATURES:

  • Accurate separation of broken rice
  • Compact size – space saving
  • Worm geared drive – maintenance free
  • VFD can be provided for better grading accuracy
  • Regrading system helps to separate head rice from tail rice

    • SPECIFICATIONS:

    Model No. PLG 2 – 400 x 1 PLG 2 – 400 x 2 PLG 2 – 400 x 3
    Capacity on paddy, TPH 1 2 3
    Power HP 1 2 3
    Overall dimensions in MM (LxWxH) 3100 x 800 x 1000 3100 x 800 x 1800 3100 x 800 x 2600
    Weight in Kgs. (approx.) 300 620 940
    Download As a PDF

    PLG 700 Rice length grader

    SALIENT FEATURES:

  • Low maintenance
  • Easy adjustment of grading accuracy
  • Fitted with nylon brush for self-cleaning of indents
  • Specially designed indents for accuracy of separation
  • Modular construction of graders for higher capacity

    • SPECIFICATIONS:

    Model No. PLG 1 DLG 1
    Capacity on paddy, TPH 2.5 5
    Power HP 2 2+2
    Overall dimension LxBxH mm 4350x1100x1450 4350x1100x2900
    Weight in Kgs. (approx.) 875 1750
    Download As a PDF
    x

    Thick and thin grader

    3

    Machines for hulling paddy in a rice mill

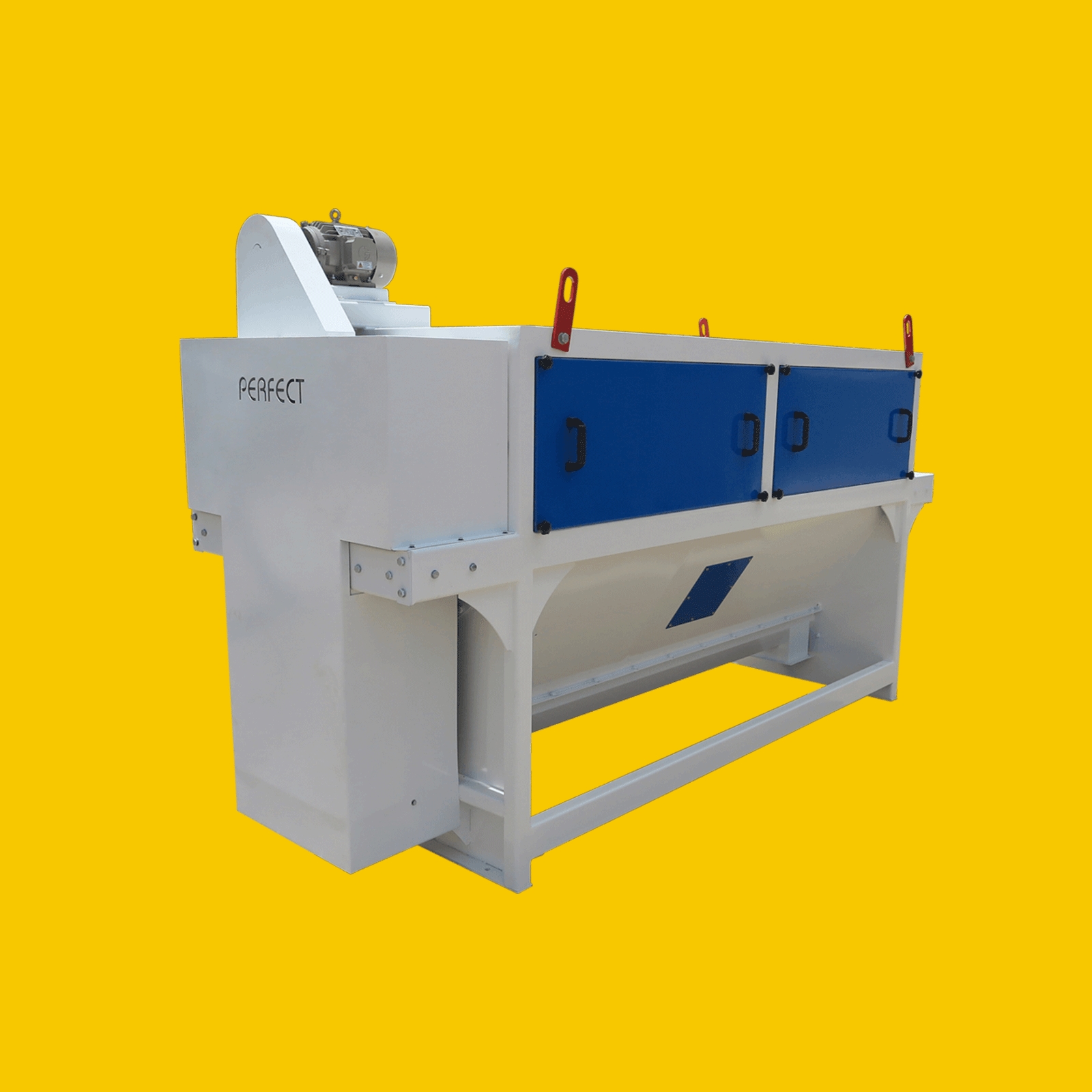

    Thick and thin grader

    Perfect’s thick and thin grader is specially designed to separate the different thickness grains. When rice is passed through the revolving SS screen, the thin/immature or oversized grains are separated effectively.

    SUITABLE FOR:

  • All types of rice

    • SALIENT FEATURES:

  • Easy maintenance
  • Less power requirement
  • An integrated cleaning brush ensures perfect cleaning of screen
  • SS 304 cylindrical wire screen for effective separation

    • SPECIFICATIONS:

    Model No. PTG 30x2 PTG 30x4 PTG 30x6
    Capacity on paddy, TPH 2 4 6
    Power HP 0.5 0.5 1.0
    Overall dimensions in MM (LxWxH) 2200 x 900 x 1950 2200 x 900 x 2550 2200 x 900 x 3150
    Weight in Kgs. (Approx) 550 750 950
    Speed in RPM 68 68 68
    Cylinder size dia x L, mm – Qty. 300 x 1715 - 2 300 x 1715 - 4 300 x 1715 - 6
    x

    Bran tip filter

    4

    Machines for hulling paddy in a rice mill

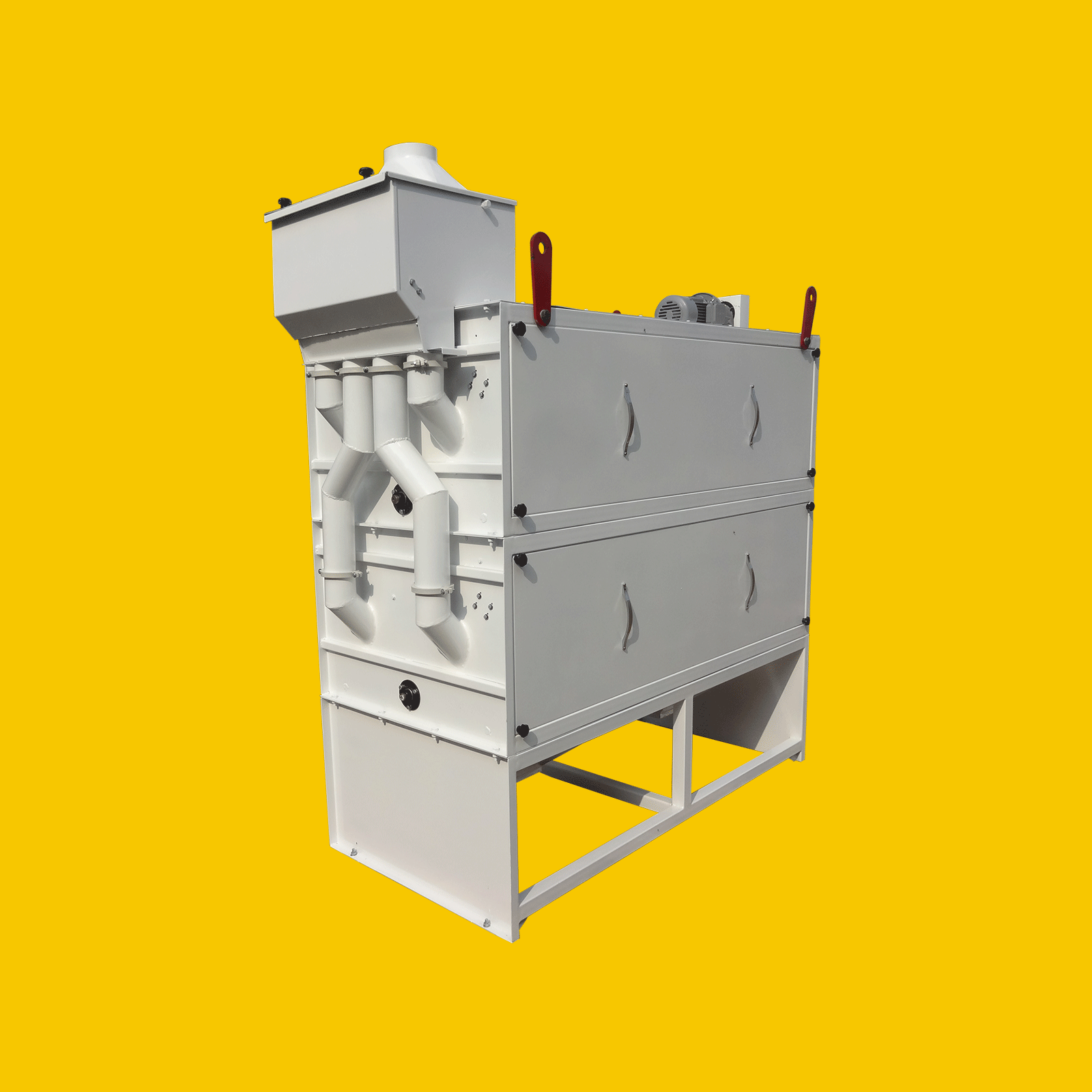

    Bran tip filter

    Brain tip filter is a simple yet highly effective for processing bran. This highly innovative product design guarantees smooth product flow and clean mechanism. The BTF is high performance technology with optimum hygiene and it’s quiet with very low noise emissions. To add on, this machine can also be used to clean fine powders like curry powder.

    SUITABLE FOR:

  • Bran of rice
  • Wheat
  • Pulses

    • SALIENT FEATURES:

  • Taper lock pulleys for easy maintenance
  • Heavy duty construction and low maintenance
  • Nylon wire filter ensures accurate separation
  • Cylindrical brush for self-cleaning of wire filter

    • SPECIFICATIONS:

    Model No. BTF 200 BTF 250
    Capacity on bran, TPH 0.8 1
    Power HP 1.5 2
    Overall dimensions in MM (LxWxH) 3200 x 900 x 1700 3200 x 900 x 1700
    Weight in Kgs. (Approx) 750 900
    Foundation dimensions in MM (Dia 14 x 4 holes) 2361 x 700 2361 x 700
    Working speed in RPM 26 26
    x
