Paddy

Standard – RWS

1

Bühler paddy dryer and rice storage plant in South Asia

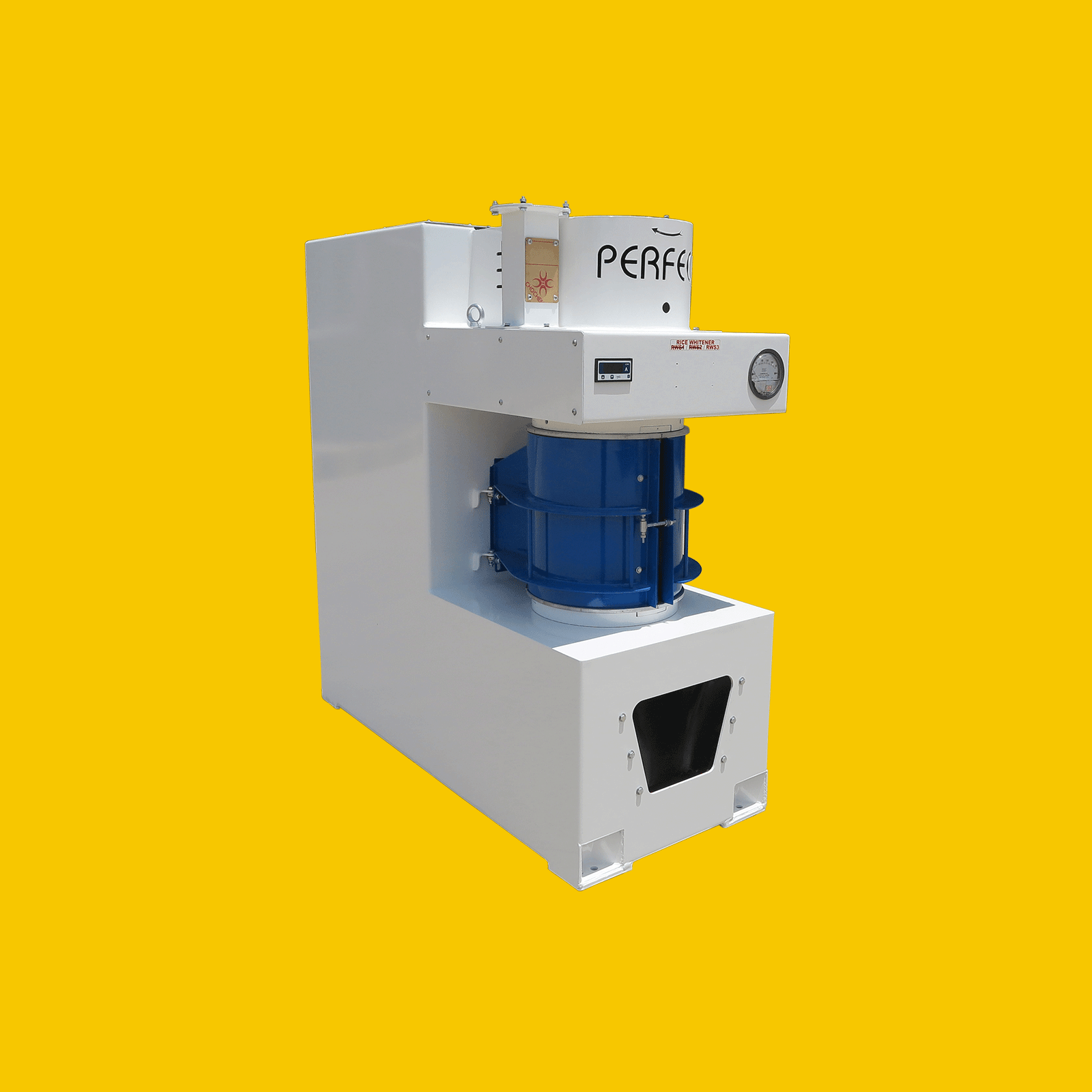

Standard – RWS

Standard whitener removes bran from the brown rice. Specially designed aspiration system takes away the bran produced during the whitening process.

SUITABLE FOR:

  • Raw paddy
  • Par boiled paddy
  • Steam paddy
  • Basmati rice
  • SALIENT FEATURES:

  • Gap between screen and stone can be easily adjusted when required
  • Heavy body for sturdy performance
  • Differential manometer to measure the chamber vacuum generated by blower
  • Digital ammeter indicates the load on motor
  • Degree of polishing can be adjusted easily
  • SPECIFICATIONS:

    Model No. RWS 1 RWS 2 RWS 3
    Capacity on paddy, TPH 1.2 1.7 2
    Power HP x RPM 15 x 1440 20 x 1440 25 x 1440
    Overall dimensions in MM (LxWxH) 1390 x 650 x 1395 1460 x 650 x 1450 1460 x 650 x 1520
    Weight in Kgs. (approx.) 580 610 750
    x

    Modified rice whitener

    2

    Service technician putting sieves into a processing machine

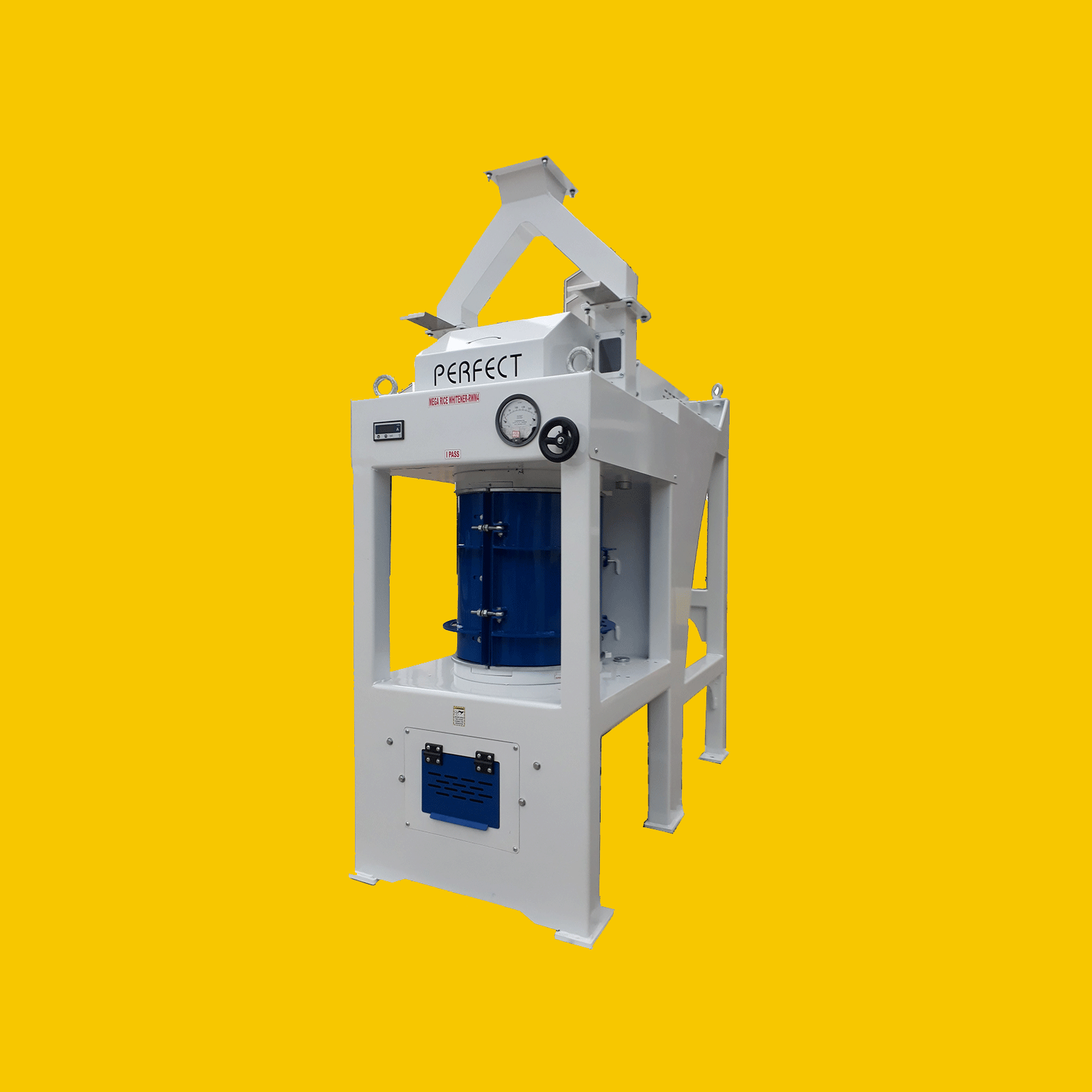

    Modified rice whitener

    Rice is whitened very gently between abrasive grinding wheel & screen without distracting the original shape of rice kernel. This machines is equipped with a mechanism for adjusting degree of whiteness.

    SUITABLE FOR:

  • Raw paddy
  • Par boiled paddy
  • Steam paddy
  • Basmati rice
  • SALIENT FEATURES:

  • Body constructed by tubular structure for rugged performance
  • Easy to maintain as the belt guard is detachable type
  • Degree of polishing can be adjusted easily
  • Digital ammeter for load indication on motor
  • SPECIFICATIONS:

    Model No. MWM 4 MWG 5
    Capacity on paddy, TPH 4 5
    Power HP x RPM 40 x 1440 50 x 1440
    Overall dimensions in MM (LxWxH) 1580 x 730 x 1970 1650 x 830 x 2400
    Weight in Kgs. (approx.) 960 1450
    x

    Mini silky polisher

    3

    Machines for hulling paddy in a rice mill

    Mini silky polisher

    Paddy pre Cleaner Single deck is intended for thorough cleaning of coarse grains at the intake stage. The machine is designed to remove all big impurities, straws, fine sand, immature paddy etc.

    SUITABLE FOR:

  • Raw rice
  • Steam rice
  • Single boiled rice
  • SALIENT FEATURES:

  • Super silky attachment for uniform mixing of water
  • High degree of polishing due to double rollers
  • Vacuum meter to indicate air suction of bran blower
  • SPECIFICATIONS:

    Model No. SPM 2
    Capacity on paddy, TPH 2
    Power HP x RPM Machine 30 x 960
    C Blower 1.5 x 2880
    Dozing pump 0.5 x 1440
    Aspiration, CMM 20
    Overall dimension LxBxH mm 2000 x 630 x 2000
    Weight in Kgs. (approx.) 900
    Foundation dimension in mm L x W (Dia – 18 x 4 holes) 1200 x 520
    x

    Ultra-silky polisher – USP 3 and USP 5

    4

    Machines for hulling paddy in a rice mill

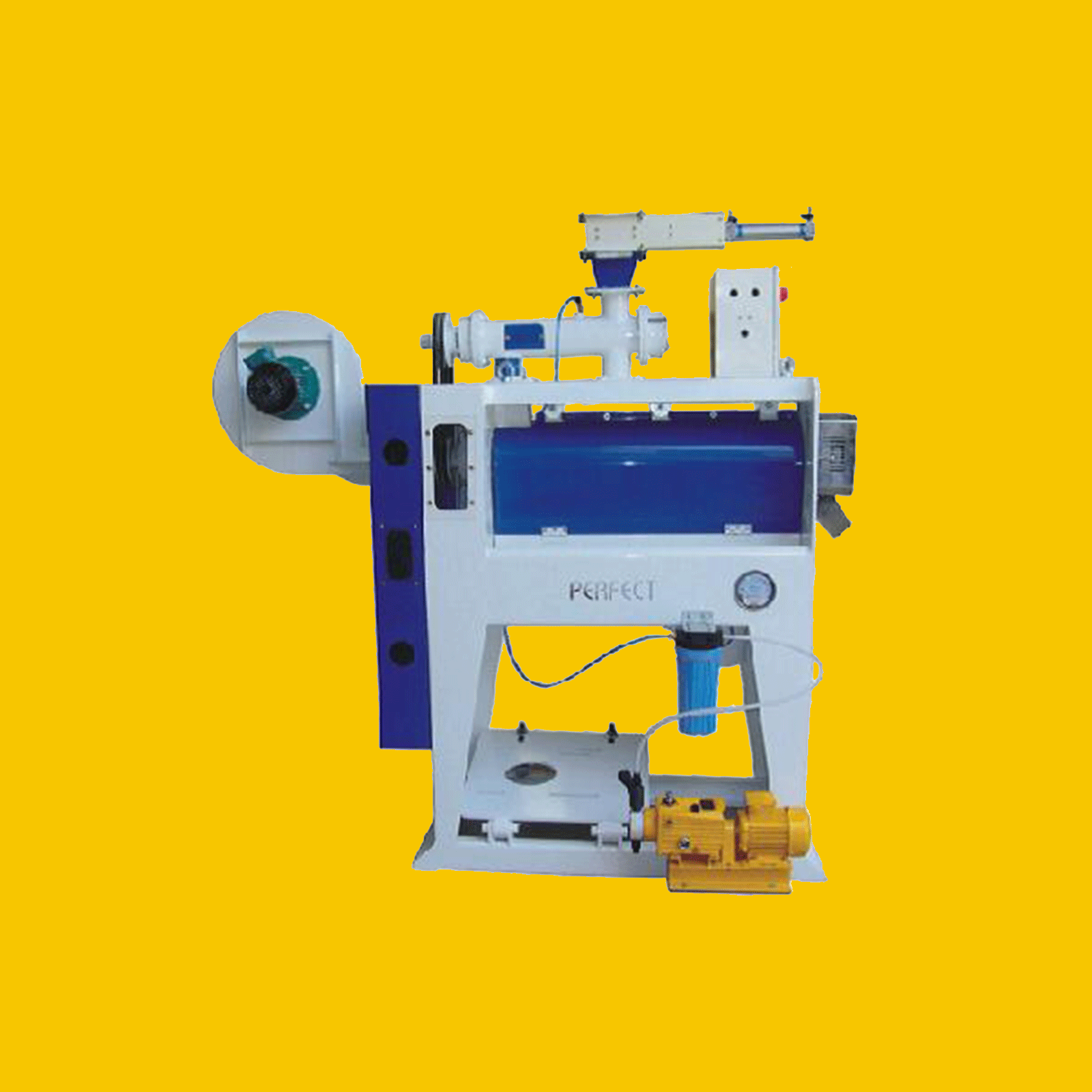

    Ultra-silky polisher – USP 3 and USP 5

    USP series is designed to gently polish the surface of the grain. Mixture of air & water is sprayed into the polishing chamber like a mist by means of a special atomiser. The use of water gives the output grains a shiny surface.

    SUITABLE FOR:

  • Raw rice
  • Steam rice
  • Par boiled rice
  • SALIENT FEATURES:

  • High degree of polishing due to long polishing rollers
  • Alloy steel rollers and screens for longlife
  • Easy bran discharge from polishing chamber
  • Manometer to indicate air suction of bran blower
  • Dozing pump for precise control of water injected
  • Better yield of head rice with high degree of polish
  • SPECIFICATIONS:

    Model No. USP 3 USP 5
    Capacity on paddy, TPH 3 4-6
    Power HP x RPM Machine 40 x 1440 60 x 1440
    SS feeder - 3 x 960
    Dozing pump 0.5 x 1440 0.5 x 1440
    Aspiration, CMM 40 50
    Overall dimension LxBxH mm 2170 x 900 x 1950 2170 x 900 x 2400
    Weight in Kgs. (approx.) 910 1100
    x

    Glaze master

    5

    Machines for hulling paddy in a rice mill

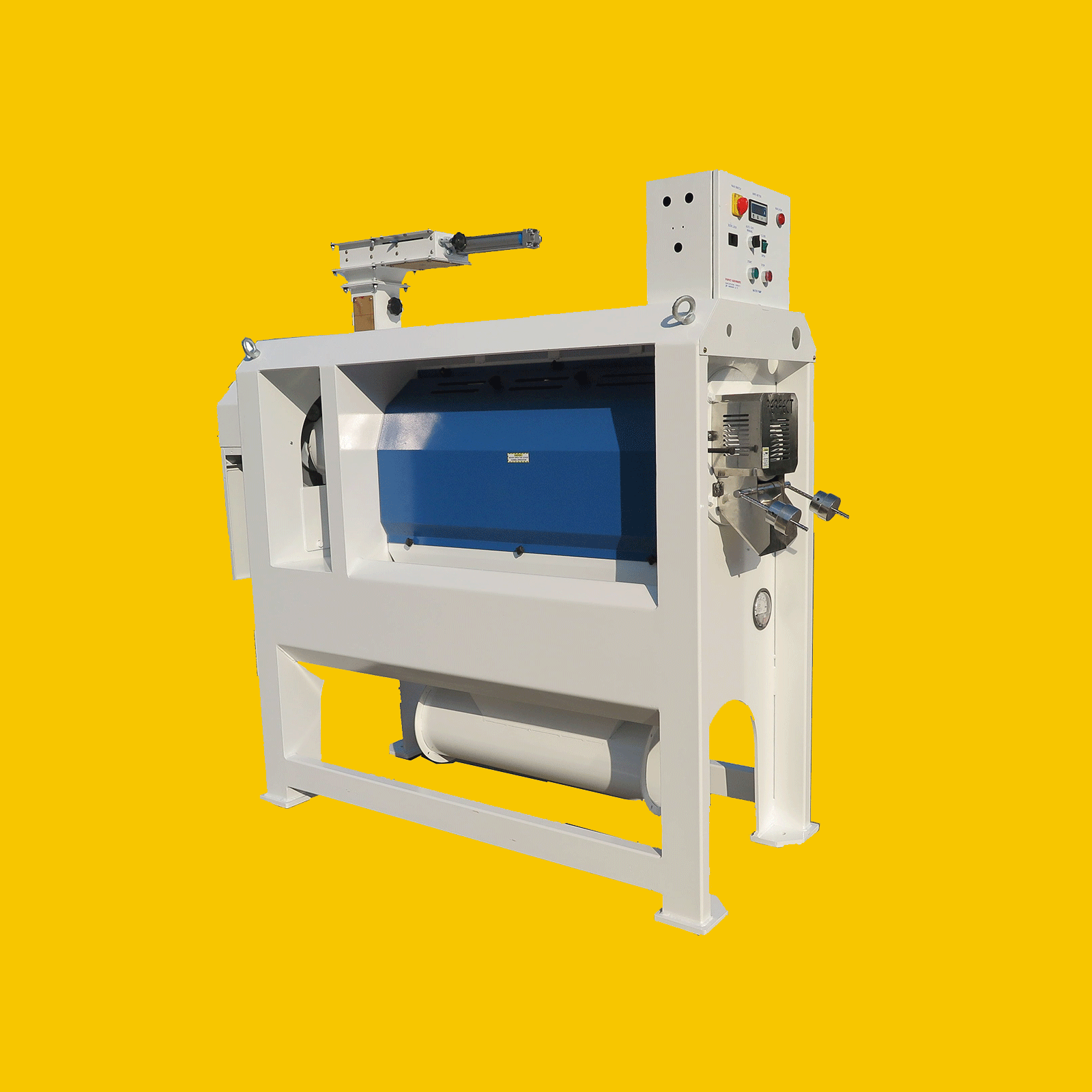

    Glaze master

    Glaze master comes with an advantage to be used as regular polisher as well as silky polisher depending on the requirement.

    SUITABLE FOR:

  • Raw rice
  • Steam rice
  • Par boiled rice
  • SALIENT FEATURES:

  • Machine can be used for regular polishing as well as silky (with pump on)
  • Suitable for raw, steam and par boiled rice
  • Dozing pump for precise control of water usage
  • Negligible broken percentage, while polishing
  • High speed blower cools rice & assists in bran discharge
  • High degree of polishing due to long roller used (495 MM)
  • SPECIFICATIONS:

    Model No. GMM2 GMS2
    Description Glaze master Glaze master cum silky
    Capacity on paddy, TPH 2 1.7
    Power HP x RPM Machine 25 x 960 30 x 960
    C Blower 1.5 x 2880 1.5 x 2880
    Dozing pump 0.5 x 1440 0.5 x 1440
    Aspiration, CMM 18 18
    Overall dimension LxBxH mm 2000 x 700 x 1750 2000 x 700 x 1750
    Weight in Kgs. (approx.) 780 780
    Foundation dimension LxW MM (Dia 18 x 4 holes) 1160 x 500 1160 x 500
    Main shaft RPM 820 820
    x
