Paddy

Manual sheller – SMI

1

Bühler paddy dryer and rice storage plant in South Asia

Manual sheller – SMI

Sheller is intended to remove husk from the raw paddy. In manual sheller, all the operations are to be done manually, from adjusting the feed rate to controlling the pressure exerted by the rubber rollers.

SUITABLE FOR:

  • Raw paddy
  • Steam paddy
  • Par boiled paddy

    • SALIENT FEATURES:

  • No need of air compressor
  • Cooling system for rubber rolls
  • Manual adjustment of rubber rolls
  • Taper lock pulleys for easy maintenance
  • DMR rubbers with taper lock retainers
  • Heavy body and housings

    • SPECIFICATIONS:

    Model No. SMI 3 SMI 5
    Capacity on paddy, TPH 2 - 4 4 - 5
    Power HP 10 12.5
    Rubber roll size 10” 12”
    Weight in Kgs. (approx.) 620 680
    Download As a PDF
    x

    Pneumatic sheller – SPN

    2

    Service technician putting sieves into a processing machine

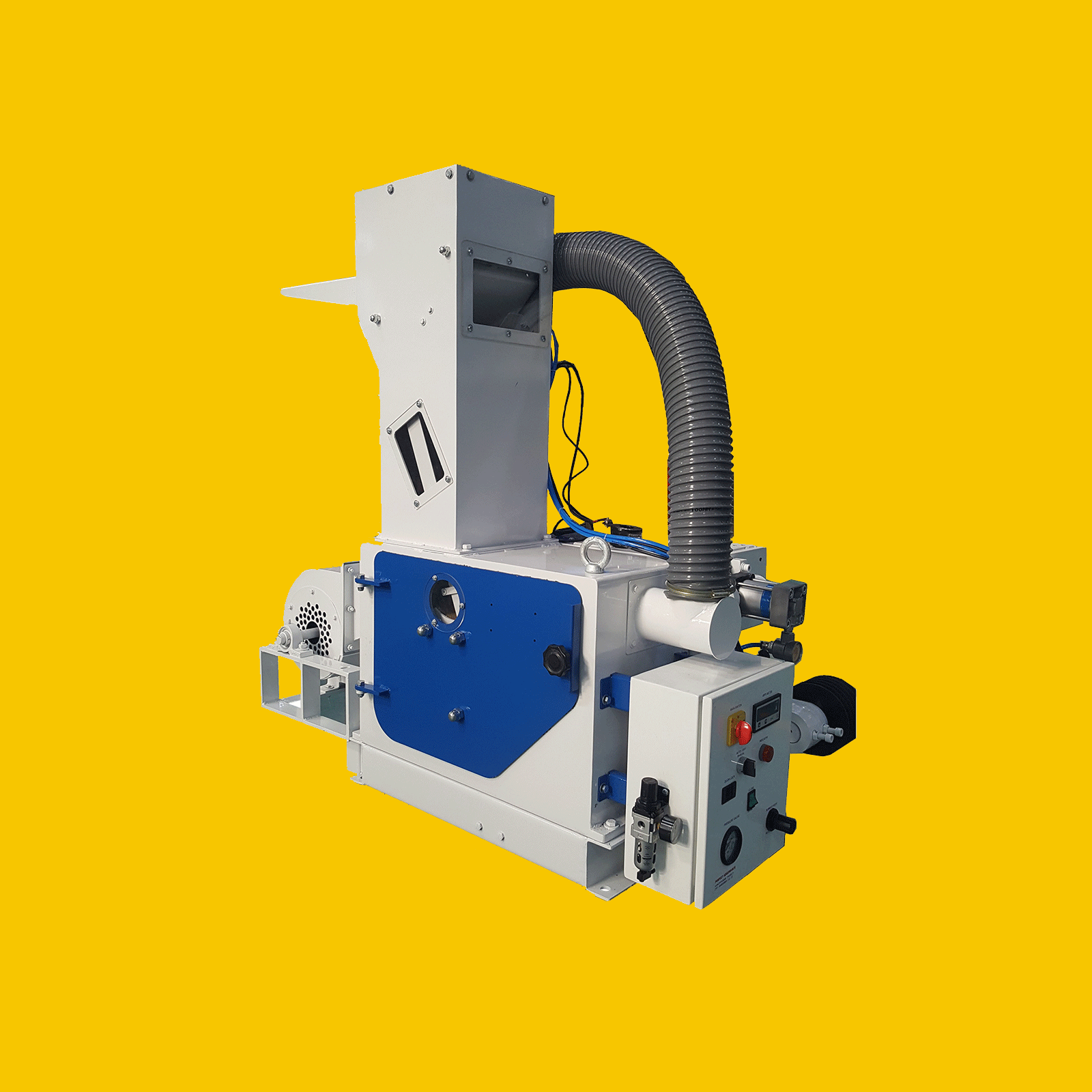

    Pneumatic sheller – SPN

    This machine is equipped with automatic systems that control the pressure exerted by the rollers, as well as the correct feed rate for the input grains.

    SUITABLE FOR:

  • Raw paddy
  • Steam paddy
  • Par boiled paddy

    • SALIENT FEATURES:

  • Automatic system but without vibro feeder
  • Effective cooling system for long life of rubber rolls
  • Shelling percentage of paddy up to 95% can be attained
  • Manual adjustment facility provided

    • SPECIFICATIONS:

    Model No. SPN 4 SPN 5
    Capacity on paddy, TPH 3 - 4 4 - 5
    Power HP 12.5 15
    Rubber roll size 10” 12”
    Weight in Kgs. (approx.) 670 700
    Download As a PDF
    x

    Vibro pneumatic sheller – SPV

    3

    Machines for hulling paddy in a rice mill

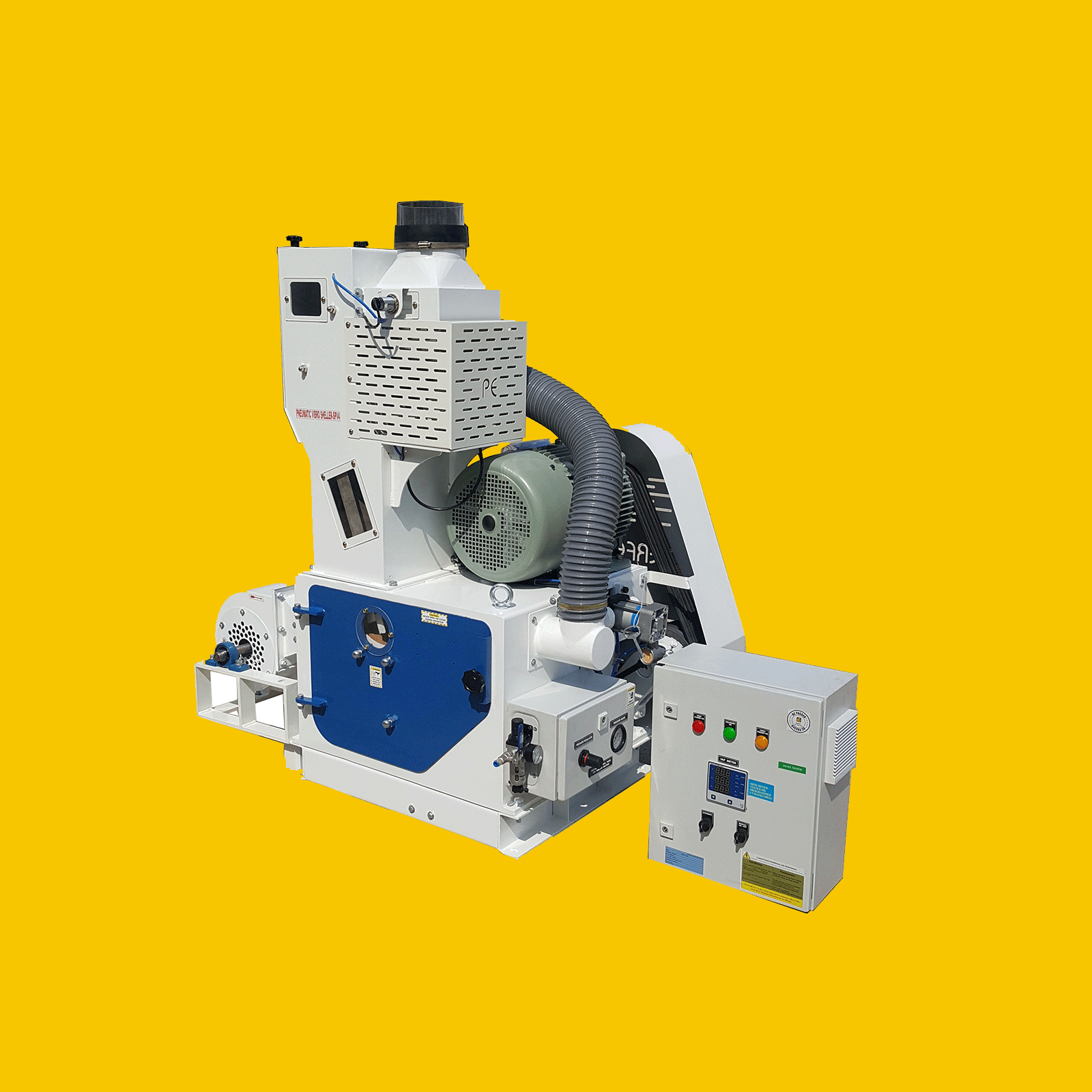

    Vibro pneumatic sheller – SPV

    Perfect’s SPV series is effectively designed to evenly distribute the feed across the across the entire rubber roller using a vibrator.

    SUITABLE FOR:

  • Raw paddy
  • Par boiled paddy
  • Steam paddy
  • Basmati paddy

    • SALIENT FEATURES:

  • Liquid filled pressure gauge for accurate control of pressure on rubber rolls
  • Vibro feeding and rubber cooling system enhances rubber life up to 25%
  • With the help of sensor enabled panel, the rubber rolls automatically disengages when the input product flow stops
  • Feed rate is controlled by vibro feeder
  • Taper lock pulleys & adaptors for easy maintenance
  • Shelling percentage up to 95% can be attained

    • SPECIFICATIONS:

    Model No. SPV 4 SPV 5
    Capacity on paddy, TPH 3 - 4 4 - 5
    Power HP 12.5 15
    Rubber roll size 10” 12”
    Weight in Kgs. (approx.) 680 750
    Download As a PDF
    x

    Standard husk aspirator

    4

    Machines for hulling paddy in a rice mill

    Standard husk aspirator

    Perfect’s husk aspirator is designed to separate husk from shelled paddy.

    SUITABLE FOR:

  • All types of grains

    • SALIENT FEATURES:

  • All husk flowing parts are made out of stainless steel
  • Dynamically balanced stainless steel impeller
  • Laser cut body parts
  • Laser cut body parts
  • Compact design and low maintenance

    • SPECIFICATIONS:

    Model No. HAS 3 HAH 4 HAH 5
    Capacity of shelled rice, TPH 2.5 4 5-6
    Power HP x RPM 3 x 1440 5 x 1440 7.5 x 1440
    Width of box 36” 42” 48”
    Overall dimensions in MM (L x W x H) 2300 x 1250 x 1400 2300 x 1400 x 1400 2500 x 1600 x 1500
    Weight in Kgs. (approx.) 490 570 700
    Download As a PDF
    x

    Husk aspirator with inbuilt blower

    5

    Machines for hulling paddy in a rice mill

    Husk aspirator with inbuilt blower

    SUITABLE FOR:

  • All types of grains

    • SALIENT FEATURES:

  • In built blower requires no maintenance of impeller
  • Accurate separation of husk from mixture
  • Conveyor for uniform feeding
  • Stainless steel impeller and baffles for long life

    • SPECIFICATIONS:

    Model No. HIB 5
    Capacity of shelled rice, TPH 3 – 4
    Power HP x RPM 5 x 1440
    Overall dimension LxBxH mm 1500x1850x1600
    Weight in Kgs. (approx.) 900
    Download As a PDF
    x
