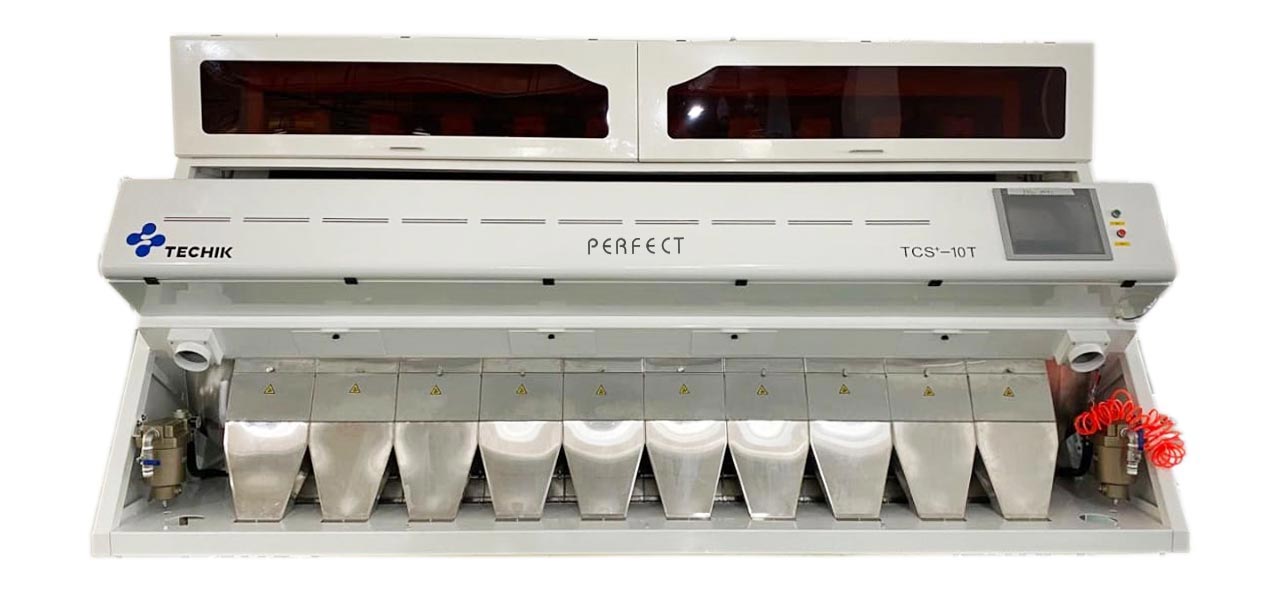

Multifunctional Colour Sorter

Multifunctional Colour Sorter

Ensuring pure and safe food with Advanced sorting technology!

Perfect provides complete solution for grain and food processors who demand highest standard of quality and safety. With focus on precision sorting and consistent yield, its optical sorters meet the requirement of small, medium and large processing plants of various applications.

Suitable for:

Rice

Cashew nuts

Beans

Peanuts

Dry peas

Almonds

Salient Features:

5400 Pixels CCD Sensor Delivers Ultra-Clear imaging

High Definition, low-distortion cameras

Proprietary software, long life cycle serviceable hardware

Strong color sorting & shape sorting capabilities

Smart and Intelligent HMI

Consistent and Reliable operation

SPECIFICATIONS:

Model	Voltage/Air Pressure	Main power (kw)	Air Consumption (m3/min)	Capacity (t/h)	Net weight (kg)	Dimension (LxWxH) (mm)
TCS-1T	180-240V, 50HZ; 0.6-0.8Mpa	0.8	<0.6	0.7-1.5	350	940X1650X1630
TCS-2T		1.4	<1.4	1-2.5	550	1240X1650X1630
TCS-3T		2	<2.0	2 - 4	750	1645X1660X2185
TCS-4T		2.5	<2.5	3 - 6	900	2025X1660X2185
TCS-5T		3	<3	3 - 8	1200	2355X1660X2185
TCS-6T		3.4	<3.2	4 - 9	1400	2670X1660X2185
TCS-7T		3.8	<3.5	5 - 10	1600	2985X1660X2195
TCS-8T		4.2	<4	6 - 11	1800	3300X1660X2195
TCS-10T		4.8	<4.8	8 - 14	2200	4100X1660X2195

Note: The parameters are based on the test results of peanut with around 2% contamination. It may vary depending upon different input and contamination
