PADDY SEPARATOR

With enriched industrial experience and knowledge, we are providing an excellent tray type range of Paddy Separators under Rice Mill Machinery Segment. Mixture of paddy and brown rice passes into the gravity paddy separator, where the paddy and brown rice are separated effectively.

Clear

Paddy

Single body-PSS

1

Bühler paddy dryer and rice storage plant in South Asia

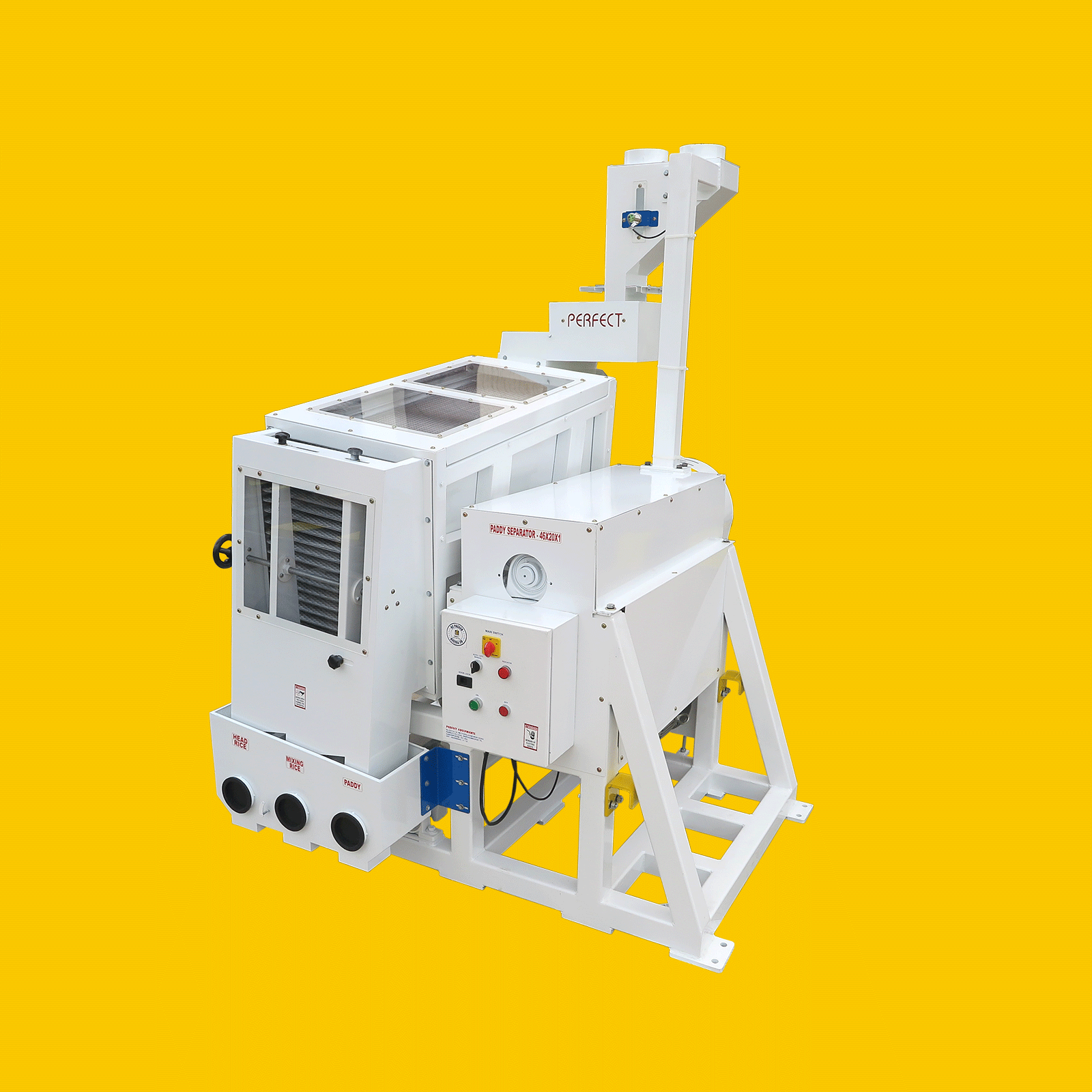

Single body – PSS

Single Body Paddy Separators are designed for medium capacity rice mills of 4 to 6 TPH. These machines comes with an automatic control panel and SS trays.

SALIENT FEATURES:

  • SS tray for long life and perfect separation
  • VFD for speed adjustment to suit different paddy variety
  • Automatically stops when there is no grain in hopper
  • Heavy body, housings and shaft for stable performance
  • Balancing weight for long life of rotating parts
  • Easily adjustable tray inclination

    • SPECIFICATIONS:

    Model No. PSS1 – 46x20x1 PSS2 – 60x20x1 PSS3 – 46x16x1
    Capacity on paddy, TPH 4 - 5 5 - 6 3 - 4
    Power HP x RPM 3x960 3x960 3x960
    Overall dimensions in MM (LxWxH) 1550 x 1780 x 2185 1700 x 1860 x 2185 1550 x 1700 x 2060
    Weight in Kgs. (approx.) 1020 1220 900
    Download As a PDF
    x

    Double body – PSD

    2

    Service technician putting sieves into a processing machine

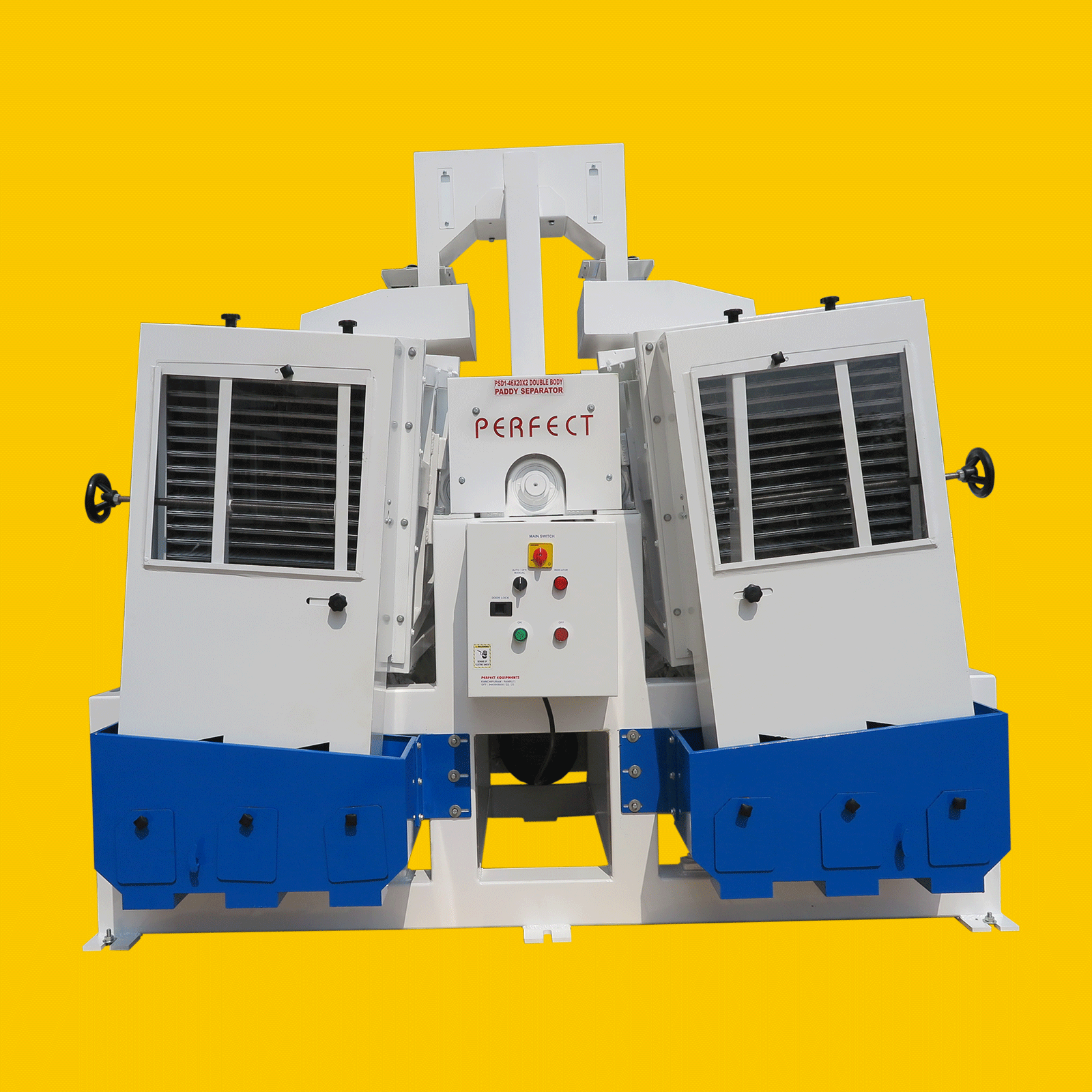

    Double body – PSD

    Double Body Paddy Separators are designed for Medium and high capacity rice mills of 5 to 10 TPH. These machines comes with an automatic control panel and SS trays.

    SALIENT FEATURES:

  • SS tray for long life and perfect separation
  • VFD for speed adjustment to suit different paddy variety
  • Easily adjustable tray inclination
  • Sensor controlled panel board for auto on/off

    • SPECIFICATIONS:

    Model No. PSD1 – 46x20x2 PSD2 – 60x20x2 PSD3 – 46x12x2
    Capacity on paddy, TPH 8 - 10 4 - 5 5 - 7
    Power HP x RPM 3x960 3x960 3x960
    Overall dimensions in MM (LxWxH) 2000 x 1780 x 2180 2280 x 1860 x 2180 2000 x 1660 x 1950
    Weight in Kgs. (approx.) 1205 1420 1100
    Download As a PDF
    x

    Tray type paddy separator – PST

    3

    Machines for hulling paddy in a rice mill

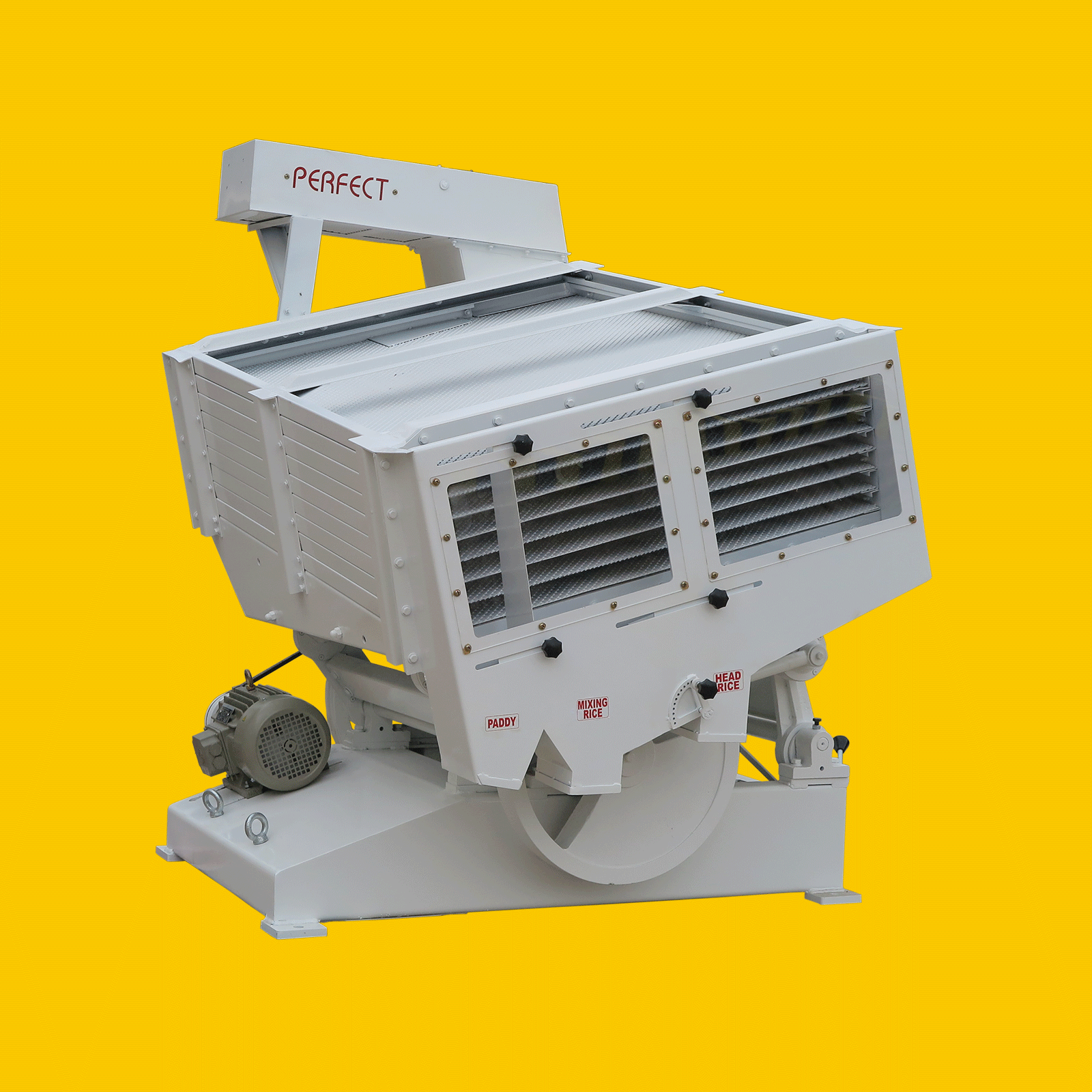

    Tray type paddy separator – PST

    Tray type paddy separators can be used by low capacity rice mills, which intends an output of 2-4 TPH.

    SPECIFICATIONS:

    Model No. PSTA PSTB PSTC PSTD
    Capacity of rice, TPH 2 2.5 3 4
    Power HP x RPM 2x1440 2x1440 2x1440 2x1440
    Screen size(lxw)-Qty (1200x1000) - 6 (1200x1000) - 8 (1200x1000) - 10 (1200x1000) - 12
    Overall dimensions in MM (LxWxH) 1650X1400X1600 1650X1400X1700 1650X1400X1800 1650X1400X1900
    Weight in Kgs. (Approx) 750 805 870 910
    x
